Industrial Pump Range Catalogue

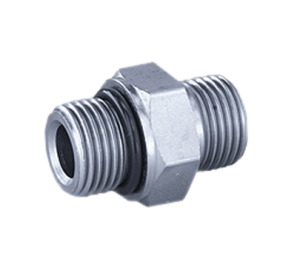

BSP Hydraulic Adapters
Standard: British Standard Pipe (BSPP / BSPT)
Material: Carbon Steel / Stainless Steel / Brass (optional)
Pressure Rating: High-pressure hydraulic systems (up to industrial standards)
Thread Types: Parallel (BSPP) & Tapered (BSPT)
Sizes: 1/8†to 2†(or as required)
Sealing Type: 60° cone / bonded seal / thread seal
Finish: Zinc plated / anti-corrosion coating
Temperature Range: Industrial hydraulic operating conditions

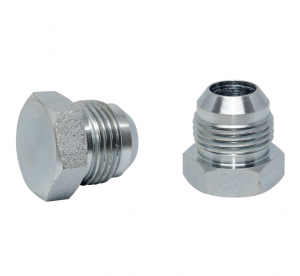

JIC Hydraulic Adapters
Standard: SAE J514 (JIC 37° Flare)
Material: Carbon Steel / Stainless Steel
Pressure Rating: High-pressure hydraulic systems (application dependent)
Connection Types: Male / Female / Swivel / Flare
Sizes: Available from 1/8†to 2†(or as per requirement)
Finish: Zinc plated / anti-corrosion coating
Temperature Range: Industrial hydraulic operating conditions

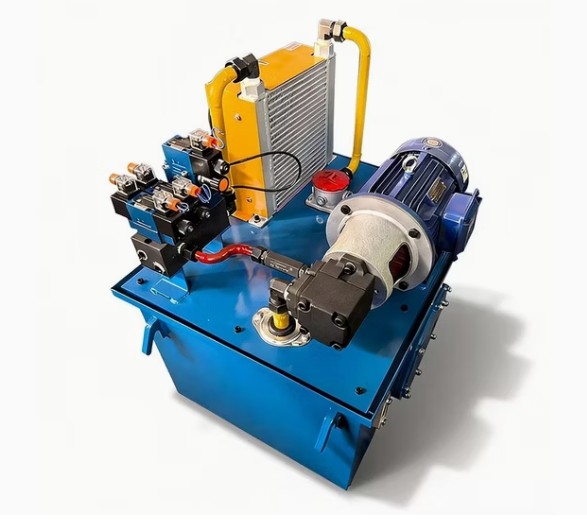

Standard Industrial Hydraulic Power Unit
Power: 2.2 kW – 7.5 kW
Voltage: 220V / 380V
Pressure: 16 – 25 MPa (160 – 250 bar)
Flow Rate: 10 – 40 L/min
Tank Capacity: 30 – 120 L
Pump Type: Gear / Vane pump
Control: Manual / Solenoid valve
Cooling: Air or oil cooler optional

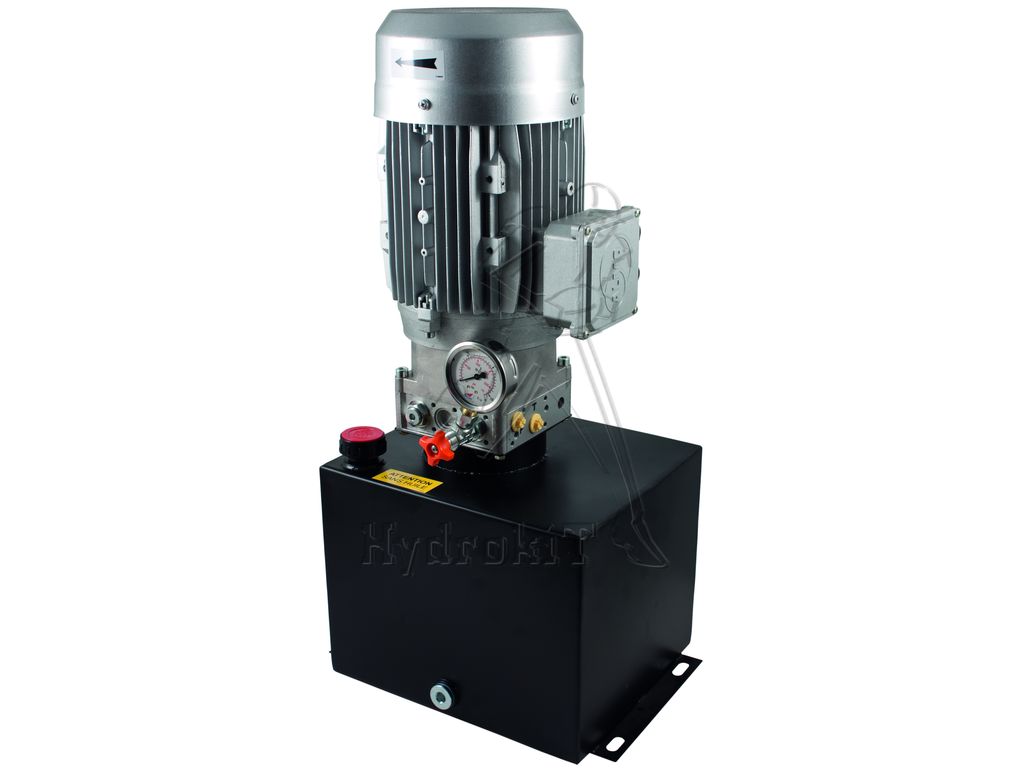

Mini Hydraulic Power Pack (Small Duty)
Power: 0.75 kW – 2.2 kW
Voltage: 220V / 24V DC optional
Pressure: 10 – 16 MPa (100 – 160 bar)
Flow Rate: 1 – 10 L/min
Tank Capacity: 5 – 20 L
Pump Type: Gear pump
Mounting: Horizontal / Vertical
Duty Cycle: Intermittent
abc
Max. Flow: 110m³/hr
Max. Head: 480m
Max. Temp: 150°C
Material: Metal
Auger Feed Screw Hopper Pump
Max Flow: 820 l/min
Max Head: 160m
abc
Max. Flow: 110m³/hr
Max. Head: 480m
Max. Temp: 150°C
Material: Metal

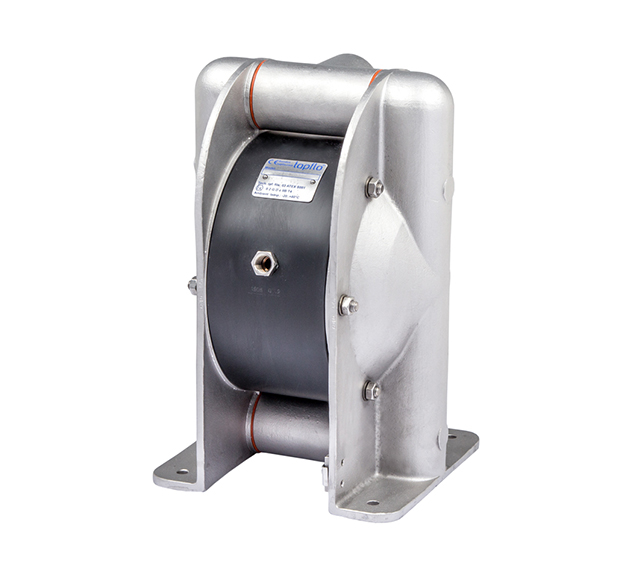

Stainless Steel Diaphragm Pump
Max Flow: 820 l/min
Max Head: 160m
Max Solids: 100mm
Viscosity: 200+ cSt
Stainless Steel Diaphragm Pump
Max Flow: 820 l/min
Max Head: 160m
Max Solids: 100mm
Viscosity: 200+ cSt
